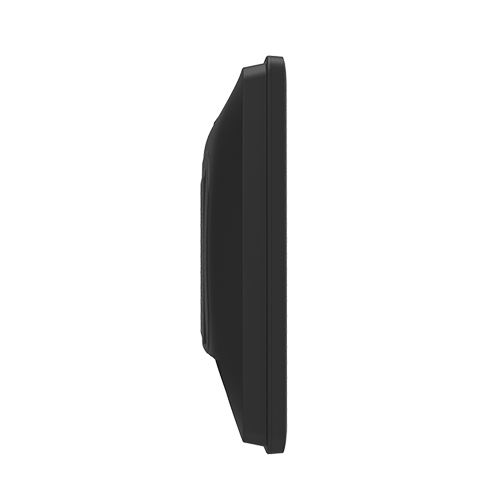

Dragon icon X-PPC 752

Ideal Touch Fanless Touch Panel PC Fanless Touch Panel PC powered by next generation Intel® Bay Trail platform and featured variety I/O interface for industrial applications

  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original

Features

Kety Feature

  • Bulit-in Intel® Bay Trail platform low power consumption and high performance solutions.
  • Fanless all-in-one industrial Panel PC grade products fits in any critical environments.
  • 15” TFT LCD with 5-wire resistive touch panel for friendly interface.
  • Ultra compact design with VESA mounting for smart space management at anyplace.



Specifications

Main Board
Main Board Name X7C
CPU Intel® Bay Trail-Mobile/Desktop SoC Processor: - Celeron® N2930 (4 cores, up to 2.16 GHz, TDP 7.5 Watt) - Celeron® J1900 (4 cores, up to 2.42 GHz, TDP 10 Watt)
System Memory SO-DIMM DDR3L 1067/1333MHz x 1, Max. 8GB
Graphic Intel® HD Graphics
BIOS Phoenix uEFI BIOS
O.S. Support Windows Embedded POSReady 7 Windows 7 Professional for Embedded Systems Windows Embedded 8.1 Industry Windows 10 Linux kernel 3.0+ & associated distributions Android 4.4.4 Compliant OS
Cooling Solution Fan-less
Display
Size 15" 4:3 Industrial grade panel
Panel backlight type LED
Brightness 250 nits (typ. w/o touch)
Resolution 1024 x 768
Touch Screen 5-wire resistive type
Front panel type With-Bezel
Tilt Angle 17° ~ 67°
Storage Device
Interface SATA2 (3.0Gb/S) x 2
HDD or SSD 2.5" SATA HDD / SSD x 1 mSATA slot x 1
I/O Ports
Serial Serial Port x 6, DB-9 Pin9 with RI/5V/12V selectable by BIOS. COM 1: RS-232, RJ-50 with convert to DB-9 cable COM 2: RS-232, RJ-50 with convert to DB-9 cable COM 3: RS-232/422/485, DB-9 COM 4: RS-232, DB-9, pin9 with RI/5V/12V selectable by BIOS (can be replace by VGA) COM 5: RS-232, Internal reserved for MSR COM 6: RS-232, Internal reserved for 2x20 VFD Customer Display
USB USB 3.0 x 1 USB 2.0 x 4
Cash Drawer RJ-12 x 1, support 12V / 24V DC cash drawer
Audio 2W Speaker x 2
VGA Optional DB15 x 1 for replace COM4, with 0/12VDC selectable by BIOS.
Expansion Slot Half size Mini PCIe x 1
DP / HDMI Mini DisplayPort x 1 (supporting active converter cable to VGA, DVI, HDMI)
DC-in 19VDC input, 2-pins radio jack x 1
LAN Gigabit Ethernet by RJ-45 x 1, support Wake on LAN
DC-out 12VDC/1A output, 2-pins radio jack x 1
Physical Dimensions
Dimension ( WxDxH ) 36.5 x 6 x 28.9 cm (14.4 x 2.4 x 11.4 inch)
Net Weight / Gross Weight 4.5 kg, 10 lb / 6 kg, 13.3 lb
Others
Mounting mechanism Support VESA Mount
Expansion Slot half size Mini PCIe x 1
Connectivity Wireless LAN module, half size mini PCIe type (Optional)
Power Supply External adapter, 19VDC input, 65 / 90 Watt optional
Color Black / White
Material Plastic / Aluminum
Certifications FCC / CE / WEEE / RoHS
Environmental Conditions
Storage Temperature -20°C ~ 60°C
Humidity 20% to 85% RH (non-condensing)
Operating Temperature 0°C ~ 40°C

Ordering Information

Main Unit Ordering Information
Part No. Description
XPPC72-5B-2930 Fanless Touch Panel PC w/ 15" TFT LCD, Intel® Celeron® N2930 2.16 GHz
XPPC72-5B-1900 Fanless Touch Panel PC w/ 15" TFT LCD, Intel® Celeron® J1900 2.42 GHz
22100051 19VDC, 65Watt adapter (default)
T.B.D. 19VDC, 90Watt adapter
Optional Accessories Ordering Information
Part No. Description
Z1300059 Customer display: LCM Attached, 20 columns x 2 lines, RS-232 Type
Z1300060 Customer display: VFD Attached, 20 columns x 2 lines, RS-232 Type
Z0500022 MSR-Front Type, 3 Tracks, USB Type
Z0500023 MSR-Side Type, 3 Tracks, and i-Button, USB Type
A0400807 Wireless LAN: IEEE 802.11 b/g/n, USB Type
20900025 OS License:Windows® 7 Professional for Embedded Systems, English Version
20900028 OS License: Windows® Embedded Standard 7, English Version
20900029 OS License: Windows® Embedded POSReady 7, English Version
20900033 OS License: Windows® Embedded 8.1 Industrt Pro Retail
