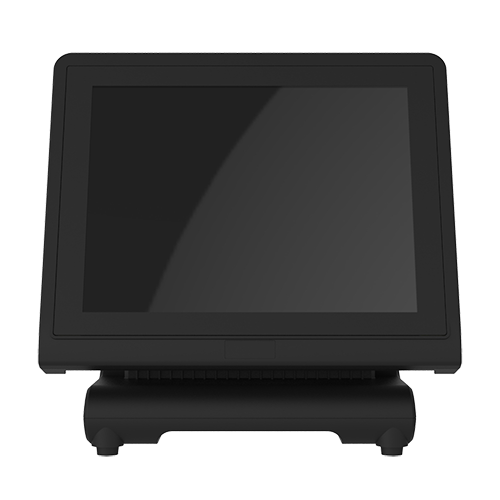

Dragon icon X-POS 725R

Harsh Environment Resistant 12.1” Fanless POS with Intel® Bay Trail Platform The X-POS 725 is powered by state of the art Intel® Bay Trail platform and featured variety I/O interface for industrial applications

  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original

Features

Key Features

  • Incorporated Intel® leading edge Bay Trail Quad Core processor
  • Powerful performance but low power consumption under fanless design
  • Display port supports active converter cable to VGA, DVI and HDMI output
  • Front panel IP55 dust/water resistant
  • Great graphic performance



Specifications

Main Board
Main Board Name X7C
CPU Intel® Bay Trail-Mobile/Desktop SoC Processor: - Celeron® N2930 (4 cores, up to 2.16 GHz, TDP 7.5 Watt) - Celeron® J1900 (4 cores, up to 2.42 GHz, TDP 10 Watt)
System Memory SO-DIMM DDR3L 1067/1333MHz x 1, Max. 8GB
Graphic Intel® HD Graphics
BIOS Phoenix uEFI BIOS
O.S. Support Windows Embedded POSReady 7 Windows 7 Professional for Embedded Systems Windows Embedded 8.1 Industry Windows 10 Linux kernel 3.0+ & associated distributions Android 4.4.4 Compliant OS
Cooling Solution Fan-less
Display
Size 12" TFT LCD Panel
Panel backlight type LED
Brightness 500 nits
Resolution 1024 x 768
Touch Screen 5-wire resistive type
Front panel type Bezel-Free
Tilt Angle 17° ~ 67°
Storage Device
Interface SATA2 (3.0Gb/S) x 2
HDD or SSD 2.5" SATA HDD / SSD x 1 mSATA slot x 1
I/O Ports
Serial Serial Port x 6, DB-9 Pin9 with RI/5V/12V selectable by BIOS. COM 1: RS-232, RJ-50 with convert to DB-9 cable COM 2: RS-232, RJ-50 with convert to DB-9 cable COM 3: RS-232/422/485, DB-9 COM 4: RS-232, DB-9, pin9 with RI/5V/12V selectable by BIOS (can be replace by VGA) COM 5: RS-232, Internal reserved for MSR COM 6: RS-232, Internal reserved for 2x20 VFD Customer Display
USB USB 3.0 x 1 USB 2.0 x 4
Cash Drawer RJ-12 x 1, support 12V / 24V DC cash drawer
Audio 2W Speaker x 2
VGA Optional DB15 x 1 for replace COM4, with 0/12VDC selectable by BIOS.
Expansion Slot Half size Mini PCIe x 1
DP / HDMI Mini DisplayPort x 1 (supporting active converter cable to VGA, DVI, HDMI)
DC-in 19VDC input, 2-pins radio jack x 1
LAN Gigabit Ethernet by RJ-45 x 1, support Wake on LAN
DC-out 12VDC/1A output, 2-pins radio jack x 1
Physical Dimensions
Dimension ( WxDxH ) 31.5 x 20 x 30.5 cm (12.3 x 7.9 x 12 inch)
Net Weight / Gross Weight 4.7 kg, 14.4 lb / 6.7 kg, 14.9 lb
Others
Mounting mechanism Support VESA Mount
Expansion Slot half size Mini PCIe x 1
Connectivity Wireless LAN module, half size mini PCIe type (Optional)
Power Supply External adapter, 19VDC input, 65 / 90 Watt optional
Color Black
Material Plastic / Aluminum
Certifications FCC / CE / WEEE / RoHS
Environmental Conditions
Storage Temperature -20~ 60°C
Humidity 20% to 85% RH (non condensing)
Operating Temperature 0°C ~ 40°C

Ordering Information

Main Unit Ordering Information
Part No. Description
XPOS75R-2B-2930 Fanless Touch POS Terminal w/ 12" TFT LCD, Intel® Celeron® N2930 2.16 GHz
XPOS75R-2B-1900 Fanless Touch POS Terminal w/ 12" TFT LCD, Intel® Celeron® J1900 2.42 GHz
Optional Accessories Ordering Information
Part No. Description
20900025 OS License:Windows® 7 Professional for Embedded Systems, English Version
20900028 OS License: Windows® Embedded Standard 7, English Version
20900029 OS License: Windows® Embedded POSReady 7, English Version
20900002 OS License: Windows® Embedded for Point of Service(WEPOS), English Version
20900033 OS License: Windows® Embedded 8.1 Industrt Pro Retail
