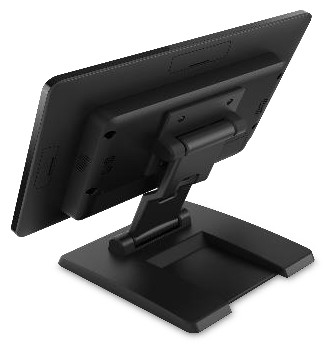

◇ Robust All-in-One POS terminal integrated with a wide variety of peripherals. ◇ Panel PC structure design to save Total Logistics Cost (TLC). ◇ Modular CPU box design allows easy adaptation to diverse Intel CPU platforms. ◇ Standard VESA holes to support various stands. ◇ Easily upgrade memory and storage by removing 4 screws.
Main Board Name | MA1N |
CPU | Alder Lake-N N97, N100 or N300 |
System Memory | DDR4 x 1, Up to 16GB |
Size | 15.6" |
Panel backlight type | EDP |
Brightness | 300nits |
Resolution | FHD 1920 x1080 |
Touch Screen | PCT (Projected Capacitive Touch) Support 10 points Multi-Touch |
HDD or SSD | m.2 2280 M-key slot x 1 |
COM Port | RS232 (RJ-50) x 2 , RI / 5V / 12V select by BIOS (COM1, COM2) |
USB | USB-C x 2 , USB3.0 x 6 Option Internal USB 2.0 x 4 (2 x 9 pin header) |
Cash Drawer | Cash Drawer supported 12V or DC-IN Voltage 19V / 24V select by Jumper |
Audio Jacks | 3.5 mm headphone and microphone combo jack x 1 |
DP / HDMI | HDMI x 1 |
LAN | 2.5G Giga LAN x 1 |
Power Switch | Power On / Off switch x 1 |
Dimension ( WxDxH ) | 381(W) x 39.9 (D) x 241.3 (H) mm / 15 (W) x 1.6 (D) x 9.5 (H) inch |
Net Weight / Gross Weight | G.W. 3.6 Kg / 7.9 lbs ; N.W. 2.6 Kg / 5.73 lbs |
Adaptor | 12V |
Power Input | 5.5 x 2.5 mm DC-IN Voltage 12 - 24V |
Mounting mechanism | VESA Holes 75 x 75 mm |
Certifications | CE , FCC & LVD |
Operating Temperature | 0 ~ 40 ℃ ( 32 ~ 104 ℉) |
Storage environment | ‘-20 ~ 60 ℃ ( -4 ~ 140 ℉) |
Specification | Optional MSR , VFD customer display , 10.1” 2nd display / USB interface Peripherals |
