Dragon icon BPC20

Embedded IoT Box PC Fan-less Box PC, Aluminum housing with Intel® Apollo lake CPU, comes with 16GB of DDR3L dual channel memory support. Versatile I/O connectivity is provided by 4x RS232, 1x USB 3.0, 2x USB 2.0, 1x USB C, 3x GbE, while expansion is supplied by m.2 2230 mini-PCIe slots for optional variety of Wi-Fi / 4G connections. Supported operating systems include Windows 7 / Windows 10 / Linux kernel 4.0+ & associated distributions.

  • Original
  • Original
  • Original

Features

3pcs Gbe LAM ports

12Vdc out

Wall mount

Specifications

Main Board
CPU FCBGA1296 J3455 (4C/4T 1.5GHz)
Cooling Solution Fanless
Memory 2x DDR3L, Up to 16GB

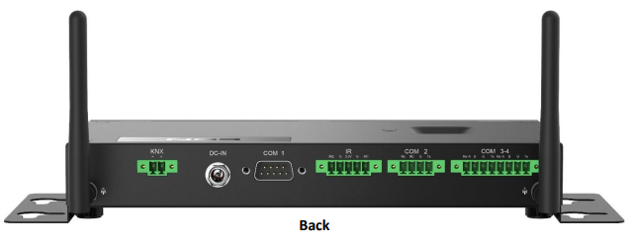

Interface Antenna hole 2 x Antenna holes for Wi-Fi KNX 2 pins phoenix connector IR 5 pins phoenix connector
Storage Device
mSATA SSD 1 x eMMC MLC 16GB onboard 1 x m.2 2280 M-key slot for SATA storage
Indicators
LED Indicator Tri-color LED module

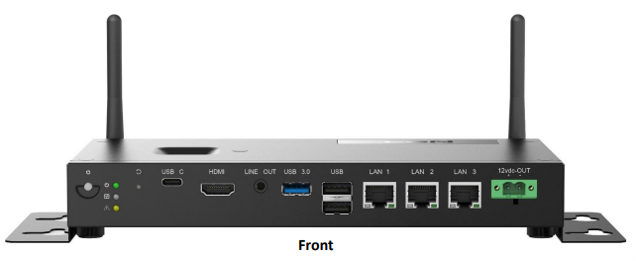

I/O Ports
USB 2x USB2.0, 1x USB3.0, 1x USB C
Audio 1x Line out
Display Output 1x HDMI
DC-in 12~19Vdc IN (DC jack)
LAN 3x Gbe LAN by RJ45
DC-out 12Vdc OUT (2 pins phoenix connector)
COM1 1x RS232 (DB9)
COM2 1x RS232 (Phoenix)
COM 3 COM3-4 :1x RS232 (Phoenix)
Power Switch 1x Power On/Off Switch or 1x Reset button
Physical Dimensions

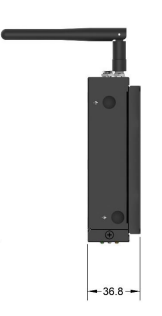

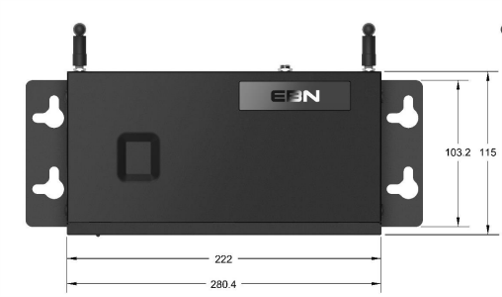

Dimension ( WxDxH ) 280.4 x 115 x 36.8mm
Input / Output
Adaptor AC Adaptor 65W
Others
Communication Wi-Fi 802.11 ac/a/b/g/n Wireless (m.2 2230)
Expansion Slot Internal Slot 2 x m.2 2230 E-Key slot and eSATA
Environmental Conditions
Operating Temperature 0 ~ 40°C
Storage environment -20 ~ 60°C
