◇ Robust & Stylish 15.6" Die casting POS integrated with a wide variety of peripherals. ◇ Foldable structure design in a compact size to save Total Logistics Cost (TLC). ◇ Motherboard designed as proprietary form factor to support diverse intel CPU platforms. ◇ Single cable connection. ◇ Tilt angle 0-90 degree. ◇ Modularized Design. Combinations of USB Type-C Monitor, Stand, Box PC to be All-in-one POS PC. ◇ Standard VESA holes for various mounting ways.

  • Original
  • Original
  • Original
Download
Add to Compare
Inquire

Features







Specifications

Main Board
CPU FCBGA MG0N：J4125 (4C/4T) 2.0G up to 2.7GHz MA1N： N97 or N305
Memory SO-DIMM MG0N:1 x DDR4, Up to 8GB MA1N:1 x DDR4, Up to 16GB MA1N:1 x DDR4, Up to 16GB
Display
Touch Screen TOUCH: PCT (Projected Capacitive Touch) Support 10 points Multi Touch SCREEN:15.6” 1366 x 768 (220nits) , Optional 1920 x1080 (250nits / 300nits)
Storage Device
HDD or SSD N/A
mSATA SSD 1x m.2 2280 M-key slot
Indicators
LED Indicator 1 x Power

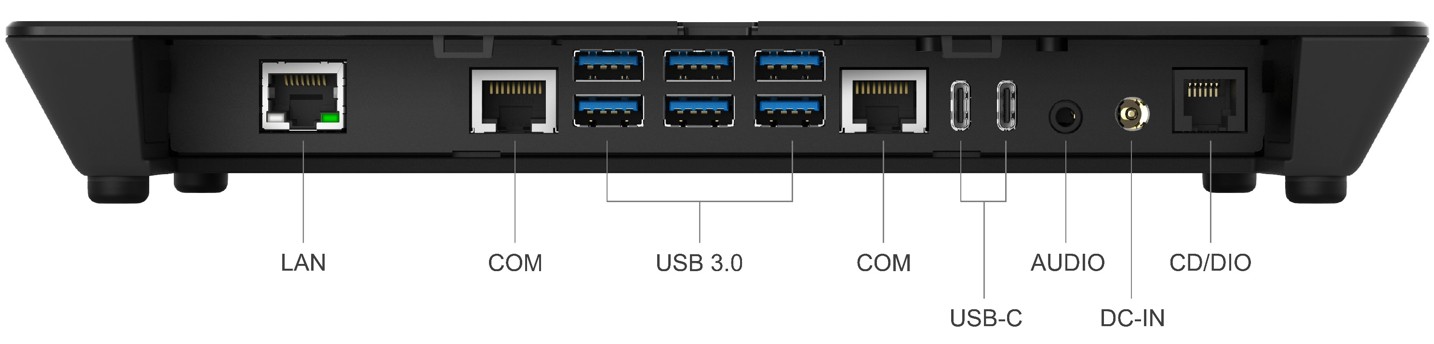

I/O Ports
USB 6 x USB3.0, 2 x USB-C Option Internal x USB 2.0 on 100pin header
Cash Drawer 1 x Cash Drawer supported 12V or DC-IN Voltage 19V/24V select by Jumper
Audio Audio Connector: 1 x 3.5 mm headphone and microphone combo jack
DP / HDMI USB-C x 2 (one for main display), HDMI x 1
DC-in MG0N：5.5 x 2.5 mm DC-IN Voltage 12-20V MA1N：5.5 x 2.5 mm DC-IN Voltage 12-24V
Giga LAN MG0N:1x Giga LAN MA1N:Intel i-225V 2.5Giga LAN
COM1 1x RS232 (RJ-50) 0/5/12V select by BIOS
COM2 1x RS232 (RJ-50) 0/5/12V select by BIOS
Power Switch 1x Power On/Off switch
Power & Battery
Power Adaptor AC Adaptor 65W (19V/3.42A)
Physical Dimensions
Dimension ( WxDxH ) 379 x 190.7 x 317.4 mm 14.9 x 7.5 x 12.5 inch
Weight G.W. 6 Kg / 13.2 lbs N.W. 5 Kg / 11 lbs
Others
Communication Wi-Fi or 3G / 4G LTE 802.11 ac/a/b/g/n Wireless (m.2 2230)
Antenna Hole N/A VESA :75mm x 75mm
Environmental Conditions
Operating Temperature 0~40℃( 32~104℉)
Storage environment -20~60℃( -4~140℉)
Option
Specification Optional RJ50 to DB9 convert cable (COM Port)

Ordering Information

Optional Accessories Ordering Information
Part No. Description
Accessory Optional MSR, VFD customer display, 10.1” 2nd display…USB Peripherals
